CHENGDU   SINBADA (ORIGINAL NAME: CHENGDU    KOSSIN)  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves

We can provide 1000000pcs sleeves of pre-two-ends or pre-shrunk bodies per month, if you are not happy with the products for any reason,we will refund your purchase price.

Mini. order : 5000pcs(single core sleeve) or 1000pcs(mass cores  sleeves)

The shipping way:      TNT, UPS, FEDEX  AND  DHL OR OTHERS

The payment way:      TT 100% in advance

keywords:   fusion splice protection sleeves, fiber splice sleeves, fiber fusion splice protector sleeves

                    fiber heat shrinkable protection sleeves, ribbon fiber splice sleeves

CHINESE :PLEASE CLICK http://www.yes666.cn/       http://www.shop1818.com/

中文：http://www.yes666.cn/     http://www.shop1818.com/

UNIT 10-2-2.,NO.12 GUO  YAN  STREET,
CHENGDU , SICHUAN ,610041, P.R.CHINA
Tel: 86-28-87492548  MR. WANG  GUO  QIANG

Fax: 86-28-87492548/85929489(24hrs)
e-mail: KOSSIN@SOHU.COM         hwangguoqiang@hotmail.com

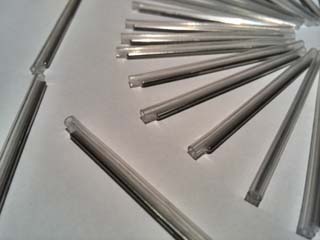

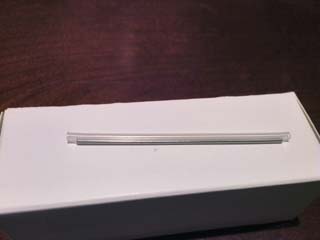

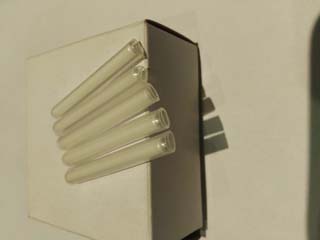

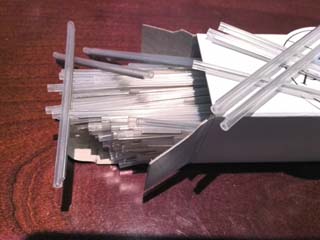

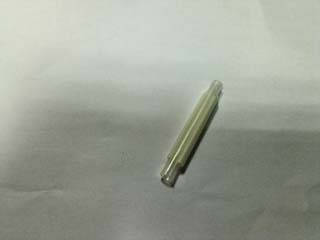

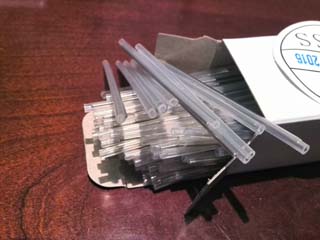

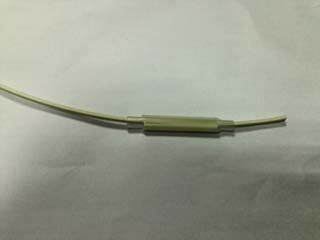

FUSION SPLICE PROTECTION SLEEVE



Features:




Description:

CHENGDU  SINBADA offers the industry's highest quality fusion splice protection sleeves.  The sleeves are constructed with a stainless steel or FRP strength member, polyolefin copolymer inner tube and a polyolefin outer tube.  Lengths are precise and all ends are free from burrs and sharp edges.  The entire assembly is heat-bonded, keeping the tubes in line with the strength member during shipping, handling and shrinking.

CHENGDU SINBADA also offers mass fusion splice protection sleeves for 2-12 fiber ribbons.  These sleeves are manufactured with ceramic or FRP or clear quartz or stainless steel strength members, polyolefin copolymer inner tube and a polyolefin outer tube.  This patent-pending sleeve represents the most versatile and reliable design in the industry.

Ordering Information---A: OUTER  TUBE: heatshrinkable tube,INNER TUBE: heat-melt tube, STRENGTH MEMBER:stainless steel

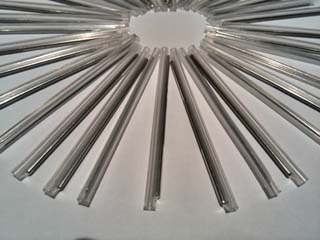

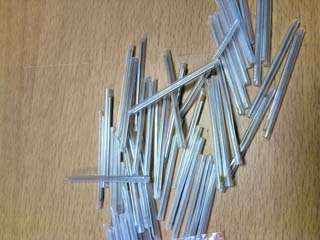

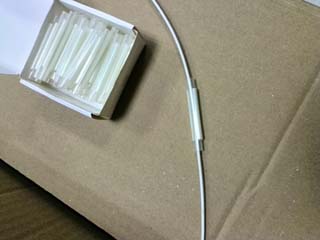

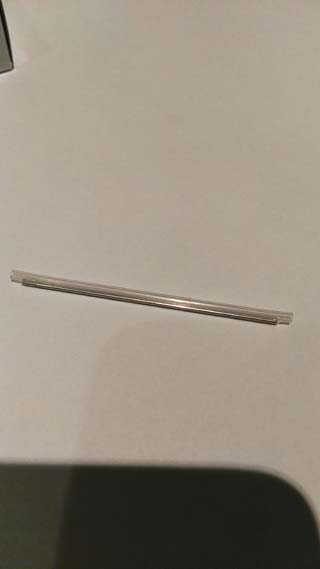

 STANDARD SLEEVE--A01(single fiber splice sleeve)













1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Lengths: 25,30,40, 45,50 & 60mm (others to order)

3

Colors: Clear ONLY (others to order)

4

just pre-shrunk of the ends

5

outer tube:PE shrinkable sleeve; inner tube: EVA hot-melt sleeve; strength member:  304# stainless steel

FACTORY PRICE:0.045USD/PC(STANDARD SLEEVE--01)



standard     sleeve  A01

Product Dimensions

Component Dimensions

Part Number

Recovered
Diameter

Finished
Length

Supplied
I.D.

Pin
Diameter

Pin
Length

Inner
Length

Outer
Length

STANDARD SLEEVE 01- Recovered diameter 2.7mm normal

RSG2.7/1--40(A01)

2.7

40

1.2

1.2

38.5

40

40

RSG2.7/1--45(A01)

             2.7

         45

           1.2

             1.2

           44.0

       45

                                                                              45

RSG2.7/1--50(A01)

2.7

50

1.2

1.2

48.5

50

50

RSG2.7/1--60(A01)

2.7

60

1.2

1.2

55.5

60

60

All dimensions in mm

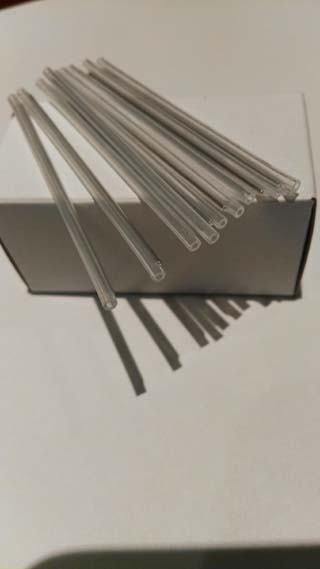

 STANDARD SLEEVE-A02(single fiber splice sleeve)













1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Lengths: 13,16,18,20,25,30,40, 45,50 & 60mm (others to order)

3

Colors: Clear ,red,black(others to order)

4

 pre-shrunk of the body

5

outer tube:EVA shrinkable sleeve; inner tube: EVA hot-melt sleeve; strength member:  304# stainless steel

FACTORY PRICE:0.055USD/PC(STANDARD SLEEVE)







standard     sleeve A02

Product Dimensions

Component Dimensions

Part Number

Recovered
Diameter

Finished
Length

Supplied
I.D.

Pin
Diameter

Pin
Length

Inner
Length

Outer
Length

STANDARD SLEEVE 02 - Recovered diameter 2.2mm normal

RSG2.2/1--40(A02)

2.2

40

1.0

1.0

38.5

40

40

RSG2.2/1--45(A02)

             2.2

         45

           1.0

             1.0

            44.0

       45

                                                                              45

RSG2.2/1--50(A02)

2.2

50

1.0

1.0

48.5

50

50

RSG2.2/1--60(A02)

2.2

60

1.0

1.0

55.5

60

60

All dimensions in mm



 STANDARD SLEEVE   A03(single fiber splice sleeve)













1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Lengths: 13,16,18,20,25,30,40, 45,50 & 60mm (others to order)

3

Colors: Clear,red,black (others to order)

4

 pre-shrunk of the body

5

outer tube:EVA  shrinkable sleeve; inner tube: EVA hot-melt sleeve; strength member:  304# stainless steel

FACTORY PRICE:0.060USD/PC(STANDARD SLEEVE)







standard     sleeve  A03

Product Dimensions

Component Dimensions

Part Number

Recovered
Diameter

Finished
Length

Supplied
I.D.

Pin
Diameter

Pin
Length

Inner
Length

Outer
Length

STANDARD SLEEVE A03 - Recovered diameter 2.0mm normal

RSG2.0/1—40(A03)

2.0

40

1.0

0.8

38.5

40

40

RSG2.0/1—45(A03)

           2.0

           45

           1.0

          0.8

              44.0

       45

                                                                              45

RSG2.0/1—50(A03)

2.0

50

1.0

0.8

48.5

50

50

RSG2.0/1—60(A03)

2.0

60

1.0

0.8

55.5

60

60

All dimensions in mm







 MINI  SLEEVE(single fiber splice sleeve) A04









MINI SLEEVE A04 - Recovered diameter 1.7mm normal



1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Lengths: 13,16,18,20,25,30,40, 45,50 & 60mm (others to order)

3

Colors: Clear ,RED,BLACK (others to order)

4

 pre-shrunk of the body

5

outer tube:EVA shrinkable sleeve; inner tube: EVA hot-melt sleeve; strength member:  304# stainless steel

FACTORY PRICE:0.065USD/PC(STANDARD SLEEVE)







mini     sleeve

Product Dimensions

Component Dimensions

Part Number

Recovered
Diameter

Finished
Length

Supplied
I.D.

Pin
Diameter

Pin
Length

Inner
Length

Outer
Length

MINI  SLEEVE - Recovered diameter 1.6mm normal

RSG1.7/1—40(A04)

1.7

40

1.0

0.6

38.5

40

40

RSG1.7/1—45(A04)

                1.7

           45

            1.0

          0.6

             44.0

       45

                                                                             45

RSG1.7/1—50(A04)

1.7

50

1.0

0.6

48.5

50

50

RSG1.7/1—60(A04)

1.7

60

1.0

0.6

55.5

60

60

All dimensions in mm



MICRO SLEEVE  A05(single fiber splice micro sleeve)



MICRO SLEEVE A05 - Recovered diameter 1.35mm normal



1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Lengths:  40mm (others :25mm/33mm/58mm  to order)

3

Colour: Clear only

4

Pre-shrunk of the body

FACTORY PRICE:0.075USD/PC

¡¡

Product Dimensions

Component Dimensions

Part Number

Recovered
Diameter

Finished
Length

Supplied
I.D.

Pin
Diameter

Pin
Length

Inner
Length

Outer
Length

MICRO SLEEVE - Recovered diameter 1.35 mm normal

RSG1.35/0.45-58(A05)

        1.35

        58

        0.45

       0.6

     55

     58

                                                        58

RSG1.35/0.45-40(A05)

1.35

40

0.45

0.6

39

40

                                                        40

RSG1.35/0.45-33(A05)

        1.35

       33

        0.45

       0.6

     30

      33

                                                        33

RSG1.35/0.45-25(A05)

        1.35

       25

        0.45

      0.6

     25

     25

                                                        25

All dimensions in mm - *Available in clear only









¡¡

Ordering Information---B: OUTER  TUBE: heatshrinkable tube,INNER TUBE: heat-melt tube, STRENGTH MEMBER:dielectric rod

 STANDARD SLEEVE—B01(single fiber splice sleeve)













1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Lengths: 40, 45,50 & 60mm (others to order)

3

Colors: Clear ,red,black(others to order)

4

 pre-shrunk of the body

5

outer tube:EVA shrinkable sleeve; inner tube: EVA hot-melt sleeve; strength member:  dielectric FRP rod

FACTORY PRICE:0.055USD/PC(STANDARD SLEEVE)







standard     sleeve B01

Product Dimensions

Component Dimensions

Part Number

Recovered
Diameter

Finished
Length

Supplied
I.D.

Pin
Diameter

Pin
Length

Inner
Length

Outer
Length

STANDARD SLEEVE B01 - Recovered diameter 2.2mm normal

RSG2.2/1--40(B01)

2.2

40

1.0

1.0

38.5

40

40

RSG2.2/1--45(B01)

           2.2

        45

        1.0

           1.0

          44.0

      45

                                                                         45

RSG2.2/1--50(B01)

2.2

50

1.0

1.0

48.5

50

50

RSG2.2/1--60(B01)

2.2

60

1.0

1.0

55.5

60

60

All dimensions in mm

Ordering Information---C: OUTER  TUBE: heatshrinkable tube,INNER TUBE: heat-melt tube, STRENGTH MEMBER:CERAMIC ROD

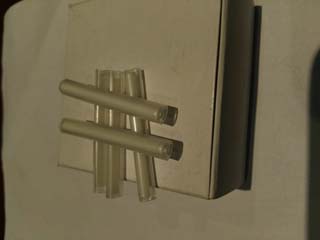

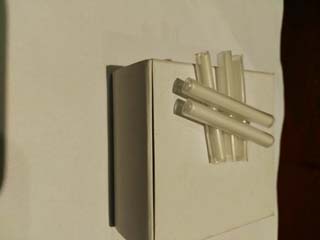

 RIBBON SLEEVE(mass fiber splice sleeve with one ceramic rod )





1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Length: 40mm       (ceramic rod)

3

Colour: Clear only





 FACTORY PRICE:0.15USD/PC(ONE CERAMIC PIN )               0.25USD/PC(TWO CERAMIC PINS )





¡¡

Product Dimensions

Component Dimensions

Part Number

Recovered
Dimensions

Finished
Length

Supplied
I.D.

Stiffener Dimensions
('D' profile)

Pin
Length

Inner
Length

Outer
Length

MASS (RIBBON) SLEEVE*

C-RSDG12--40(TWO PIN)

5.8x 5.2

40

3.7x 1.5

4.0W x 2.0H

40

40

40

C-RSDG6 --40(TWO PIN)

4.2x 4.0

40

3.0x 1.5

3.0W x 1.5H

40

40

40

C-RSDG4 --40(TWO PIN)

4.2 x 4.0

40

2.0x 1.2

3.0W x 1.5H

40

40

40

C-RSDG4 --40(ONE PIN)

3.8 x 3.0

40

2.0x 1.2

3.0W x 1.5H

40

40

40

C-RSDG6 --40(ONE PIN)

4.0x 3.2

40

3.0x 1.5

3.0W x 1.5H

40

40

40

C-RSDG12--40(ONE PIN)

5.2x 4.2

40

3.7 x1.5

4.0W x 2.0H

40

40

40

All dimensions in mm - *Available in clear only

Ordering Information---D: OUTER  TUBE: heatshrinkable tube,INNER TUBE: heat-melt tube, STRENGTH MEMBER:QUARTZ ROD

 RIBBON SLEEVE(mass fiber splice sleeve with one quartz rod )





1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Length: 40mm       (quartz  rod)

3

Colour: Clear only





 FACTORY PRICE:0.3USD/PC(ONE QUARTZ PIN )               0.4USD/PC(TWO QUARTZ PINS )





¡¡

Product Dimensions

Component Dimensions

Part Number

Recovered
Dimensions

Finished
Length

Supplied
I.D.

Stiffener Dimensions
('D' profile)

Pin
Length

Inner
Length

Outer
Length

MASS (RIBBON) SLEEVE*

Q-RSDG12--40(TWO PIN)

5.8x 5.2

40

3.7x 1.5

4.0W x 2.0H

40

40

40

Q-RSDG6 --40(TWO PIN)

4.2x 4.0

40

3.0x 1.5

3.0W x 1.5H

40

40

40

Q-RSDG4 --40(TWO PIN)

4.2 x 4.0

40

2.0x 1.2

3.0W x 1.5H

40

40

40

Q-RSDG4 --40(ONE PIN)

3.8 x 3.0

40

2.0x 1.2

3.0W x 1.5H

40

40

40

Q-RSDG6 --40(ONE PIN)

4.0x 3.2

40

3.0x 1.5

3.0W x 1.5H

40

40

40

Q-RSDG12--40(ONE PIN)

5.2x 4.2

40

3.7 x1.5

4.0W x 2.0H

40

40

40

All dimensions in mm - *Available in clear only

Ordering Information---E: OUTER  TUBE: heatshrinkable tube,INNER TUBE: heat-melt tube, STRENGTH MEMBER:FRP ROD

 RIBBON SLEEVE(mass fiber splice sleeve with one FRP rod )





1

CHENGDU SINBADA  is a specialized manufacturer of CHINA Fiber Optic Fusion Splice Protector Sleeves.

2

Length: 40mm       (FRP rod)

3

Colour: Clear only





 FACTORY PRICE:0.1USD/PC(ONE FRP PIN )               0.15USD/PC(TWO FRP PINS )





¡¡

Product Dimensions

Component Dimensions

Part Number

Recovered
Dimensions

Finished
Length

Supplied
I.D.

Stiffener Dimensions
('D' profile)

Pin
Length

Inner
Length

Outer
Length

MASS (RIBBON) SLEEVE*

F-RSDG12--40(TWO PIN)

5.8x 5.2

40

3.7x 1.5

4.0W x 2.0H

40

40

40

F-RSDG6 --40(TWO PIN)

4.2x 4.0

40

3.0x 1.5

3.0W x 1.5H

40

40

40

F-RSDG4 --40(TWO PIN)

4.2 x 4.0

40

2.0x 1.2

3.0W x 1.5H

40

40

40

F-RSDG4 --40(ONE PIN)

3.8 x 3.0

40

2.0x 1.2

3.0W x 1.5H

40

40

40

F-RSDG6 --40(ONE PIN)

4.0x 3.2

40

3.0x 1.5

3.0W x 1.5H

40

40

40

F-RSDG12--40(ONE PIN)

5.2x 4.2

40

3.7 x1.5

4.0W x 2.0H

40

40

40

All dimensions in mm - *Available in clear only
